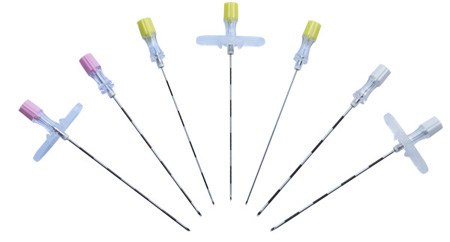

A variety of anesthesia needles are available either "off-the-shelf" or to your specific geometry.
All ISPG stock items are 510(k)'d and are manufactured under cGMP's. Needles are provided bulk-clean, ready to be sterilized.
Choose from our standard line of needles or let ISPG help you design your own custom geometry.
Customization is available for the following attributes:
- Gauge and/or length
- Needle and/or stylet geometry
- Sharpness/penetration value
- Location of notch
- Hub style
- Stylet cap color
- Etch markings or depth markings
- Echogenic tips
- Wing style
Quincke Needle |
 |
Touhy Needle |
 |
Epidural needles are available with or without graduations and wings. Sizes include, but are not limited to, the following:
Lancet Spinal or “Quinke-style” needles |
||
| Part Number | Description | Hub Color (ISO) |
| BQ18S35P0 | 18 Ga. x 3.5” | Pink |
| BQ18S30P0 | 18 Ga. x 3.0” | Pink |
| BQ19S35P0 | 19 Ga. x 3.5” | Cream |
| BQ19S30P0 | 19 Ga. x 3.0” | Cream |
| BQ20S35P0 | 20 Ga. x 3.5” | Yellow |
| BQ20S30P0 | 20 Ga. x 3.0” | Yellow |
| BQ20S15P0 | 20 Ga. x 1.5” | Yellow |
| BQ21S35P0 | 21 Ga. x 3.5” | Deep Green |
| BQ22S15P0 | 22 Ga. x 1.5” | Black |
| BQ22S30P0 | 22 Ga. x 3.0” | Black |
| BQ22S35P0 | 22 Ga. x 3.5” | Black |
| BQ23S35P0 | 23 Ga. x 3.5” | Deep Blue |
| BQ23S30P0 | 23 Ga. x 3.0” | Deep Blue |
| BQ25S35P0 | 25 Ga. x 3.5” | Orange |
| BQ25S30P0 | 25 Ga. x 3.0” | Orange |
| BQ26S35P0 | 26 Ga. x 3.5” | Light Brown |
| BQ27S35P0 | 27 Ga. x 3.5” | Medium Gray |
| BQ29S35P0 | 29 Ga. x 3.5” | Red |
Note: Additional lengths are available upon request. Special colored hubs are also available in quantity.
Epidural Needles |
||
| Part Number | Description | Hub color |
| BT17S35P1 | 17 Ga. x 3.5” Tuohy with graduations no wings | White |
| BT17S35P3 | 17 Ga. x 3.5” Tuohy with graduations, with wings | White |
| BH17S35P0 | 17 Ga. x 3.5” Hustead no graduations, no wings | White |
| BT18S35P1 | 18 Ga. x 3.5” Tuohy with graduations, no wings | Pink |
| BT18S35P3 | 18 Ga x 3.5” Tuohy with graduations, with wings | Pink |
| BH18S35P0 | 18 Ga. Hustead x 3.5” no graduations, no wings | Pink |
| BT22S35P1 | 22 Ga. x 3.5” Tuohy with graduations, no wings | Black |
Introducer needles are available with or without stylet.
The hub is specially funnel shaped to allow smooth introduction without catching
Introducer needles are also available with an echogenic tip.
Introducer Needles |
|
Part Number |
Description |
| BN18S12P0 | 18 Ga. x 1.25” without wings and stylet |
| BN18S15P0 | 18 Ga. x 1.5” without wings and stylet |
| BN18S25P0 | 18 Ga. x 2.5” without wings and stylet |
| BN20S12P0 | 20 Ga. x 1.25” without wings and stylet |
| BN20S25P0 | 20 Ga. x 2.5” without wings and stylet |
| BN22S12P0 | 22 Ga. x 1.25” without wings and stylet |
 |
ISPG’s new hub line offers three options of crystal clean, ergonomic hubs:
- A standard clear patented magnifying hub which offers quick visualization of CSF
- A fixed wing hub with our patented magnifying feature
- A removable wing hub with our patented magnifying feature
Standard Magnifying Hub |
Fixed Wing |
Removable |
||
 |
 |
 |
ISPG’s new hubs are stackable so that you can combine them.
Easy to hold and designed to clearly identify the location of the bevel, ISPG’s patented hubs are the latest development in procedure needles.
 |
